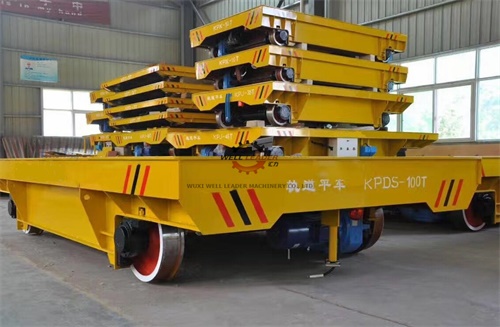

Heavy Duty Rail Flat Electric Transfer Cart 100ton Table 1800x3000mm On tracks

China Heavy Duty Rail Flat Electric Transfer Cart 100ton Table 1800x3000mm On tracks supplier

Large Image :  Heavy Duty Rail Flat Electric Transfer Cart 100ton Table 1800x3000mm On tracks

Product Details:

Place of Origin: PRC
Brand Name: Well Leader
Certification: ISO, CE
Model Number: KPDX-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 25Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10sets per month
Detailed Product Description
Capacity: 100T Table Size: 3000x1800mm
Table Height: 750mm Transfer Speed: 25m/min
Wheel Dia.: 700mm Control: Remote Box
Protection: Anti Crush Transfer: Anti-rollover
Motor Power: 7.5kw Brake: Electromagnetic



The power is supplied with Three-phase 36V safe voltage unit.
The working principle : AC 380V is transformed into AC 36V by way of transformer into rails, and then sent to the step-up transformer for triphase AC 380V alternating current to YZ motor.(Notice:1)You have to be sure of rails insulation. 2) Travelling distance is beyond 55 mts,you have to add another step-down transformer.3)For rated load above 100 tons, you have to adopt triphase 36V low-voltage-rail-power-supply and YZ motor)
Advantage: Rails are electricity conductor instead of cable. You need not worry about rail circuit that would be impacted because the safe voltage, and staff wouldn't be pull or draw cable in case of injuring it.

Technical Parameters:
Model No. KPDS-100
Capacity: 100TON
Type: Moving on rails / tracks
Power supply: through rails at safe voltage
Transport distance: 60 meters
Table size: 3000X1800X750mm
Travel speed: 0-20m/min
Wheel dia.: ɇ700mm
Motor power: 7.5kW
Control: wireless remote box
Protection: Buzzer, anti-crush device
Breaking: Electromagnetic brake
Rails grade: P43


Other models for your option:

Type KPDS KPDS-6 KPDS-10 KPDS-16 KPDS-25 KPDS-40 KPDS-63 KDDS-100
Rated Load(t) 6 10 16 25 40 63 100

Speed

(m/min)

30 30 30 30 25 25 25
Wheel Diameter 300 300 350 400 500 600 700

Bottom-

clearance(mm)

50 50 50 60 60 60 60
Minimum corner turning 50 50 50 60 60 60
Power supply AC 380 V→ AC36V → AC380V
Rail Code P 24 P 38 P 43 P43
Wheel quantity 4 4 4 4

Max.wheel load

( t )

1.91 3.21 4.87 7.5 11.5 16.9 22.9
Weight (ton) 3.4 3.72 4.2 6. 8.5 11.4 15.2
