Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

China Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M supplier
Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M supplier Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M supplier Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M supplier Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M supplier

Large Image :  Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

Product Details:

Place of Origin: PRC
Brand Name: Well Leader
Certification: CE,ISO
Model Number: HC1515

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Valid Extend: 1500mm Valid Elevate: 1500mm
Rotate: +/- 180dgr Workpiece Dia.: 600-1500mm
Criss-cross Slide: 100x100mm Control Cable: 10M
Extend Speed: 120-1200mm/min Elevate Speed: 400mm/min

Our Column and Boom Welding Manipulators are designed to work with rotating and positioning equipments by reaching weld areas of 1*1m, 2*2m, 3*3m until 10*10m to fulfill any welding application, save production time and increase your accuracy and convenience on even the most difficult welds.
Applicable welding method: MIG (GMAW), TIG (GTAW), CO2, SAW. ETC

Features:
1. +/-180dgr rotation with lock
2. Operator's seat mounted on welding head end.
3. co-worker with welding rotator or positioner, combined control system
4. Anti-drop device
5. Oil-free gearbox to easy maintanance
6. cables in drag chain to protect wires & cables
7. motorized criss-cross controller mounted to fine adjust seam location
8. Flux recovery system equipped for submerged arc welding, no labor charging or collecting flux.
9. solid plate and guide rails, to get stable & precision working performance.




Model HC1515 HC2020 HC3030 HC4040 HC5050 HC6060
Transverse stroke (mm) 1500 2000 3000 4000 5000 6000
Elevate stroke (mm) 1500 2000 3000 4000 5000 6000
Column rotate range +/-180° By manual +/-180° +/-180° +/-180° +/-180°
Boom elevate speed 400mm/min 1000mm/min
Boom transverse speed 120-1200mm/min
Criss-Cross slide stroke 100*100mm by manual 100X100mm motorized
Max load at end 50kg 200kg
Base ravel speed Movable By manual 200-2000mm/min
Fixed 0
Rail distance Movable 800mm 800mm 1560mm 1560mm 1730mm 2000mm
Fixed 0
Min height of the boom Movable 515mm 468mm 780mm 780mm 800mm 865mm
Fixed 475mm 448mm 670mm 670mm 710mm 765mm
Overall height Movable 2310mm 3140mm 4940mm 5940mm 6960mm 8230mm
Fixed 2270mm 3120mm 4830mm 5830mm 6870mm 8130mm

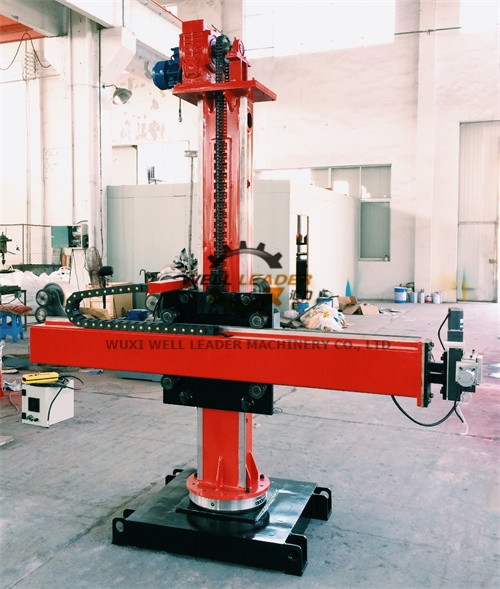

1. Machine picture:

Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

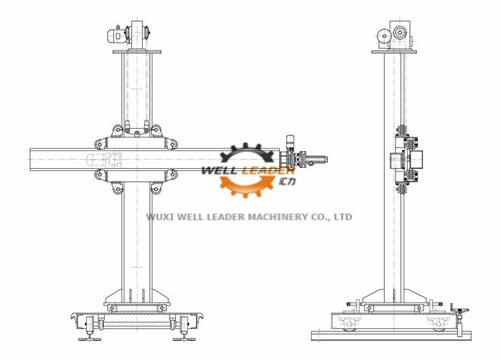

2. Sketch:

Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

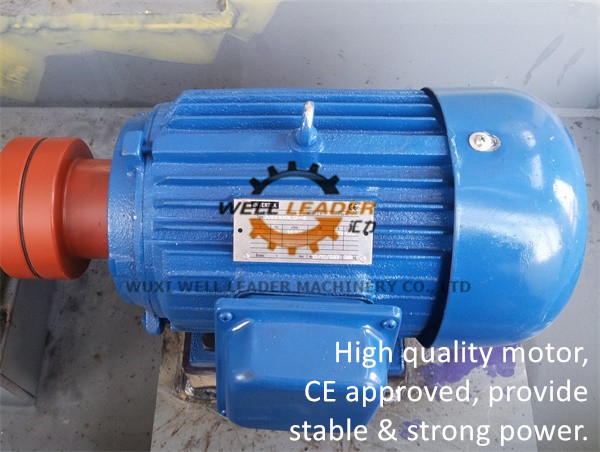

3. Quality Motor
Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

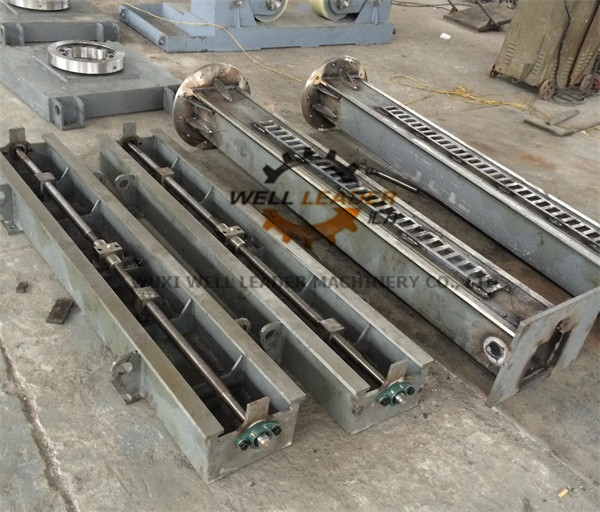

 4. Machine body is shot blasted and done by heat treatment, to provide a long lasting working without deforamtion.


Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

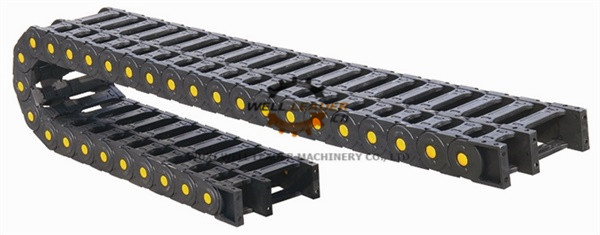

 5. High quality drag chain is equipped for cables, makes the machine tidy and protects all cables & wires.
 Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

6. Export & seaworthy package

 Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M

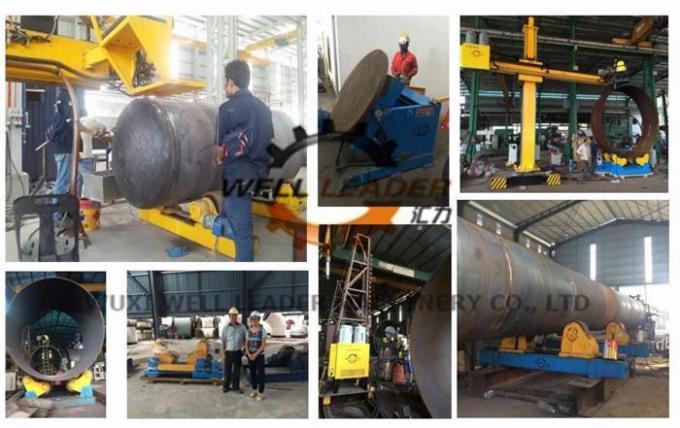

7. Applications in industries of chemical & petrochemical, Boilers, Storage Tanks, Pipes.
Manual Column And Boom Welding Machine 180 Dgr Rotation With Lock 1.5*1.5M


We guarantee you in Quality, Service & Reputation. Let's be your reliable & loyal partner:

1. Quality Process Control:

All the machines are done testing before shipment. A 30min trial working is executed to guarantee the machine be faultless.

2. Warranty
We provide 2 years warranty for whole machine.

3. Configuration
Qualified motors & gearbox, hi-class bearings, durable lasting PU material, hi-strength body structure, CE approved wiring and mounting.

4. Small Minimum Order:
1 set can be ordered.

5. Use your logo and color for your order.
