Longitudinal Seam Column And Boom Welding Manipulators For Tank / Wind Tower

Basic Information
Place of Origin: PRC
Brand Name: Well Leader
Certification: CE,ISO
Model Number: HC6060
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50sets per month
Detail Information
Vessel Length: 6-12m Vessel Diameter: 6000mm
Criss-cross Slide: 120x120mm Welding Speed: 120-1200mm/min
Export To: Melaka Place Of Origin: Wx, CN
High Light:

Column And Boom Welding Manipulators

,

column boom welding machine


Product Description

Longitudinal seam welding manipulator Column and boom for Tank / Wind tower



Manufacturing tanks of all kinds is one of the most common applications of laser seam tracking. Whether it is for small or large tanks, or whether the tanks are for holding air, water, fuel or even cryogenic materials, we has plenty of experience in tank manufacturing equipment/machines. Common approaches to welding tanks include mounting large tanks on turning rolls, mounting small tanks on lathes, and increasingly, welding tanks using robots.

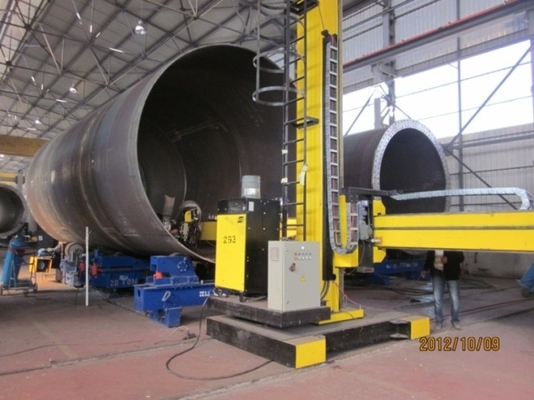

Large tanks are often made using a column & boom to support the weld head with the tank itself supported on turning rolls, as shown here. This can make access to the weld head difficult or even dangerous for an operator, so laser tracking can help to move the operator to a safe place, as shown by the position of the console on this machine.



Model HC1515 HC2020 HC4040 HC5050 HC6060
Transverse stroke (mm) 1500 2000 4000 5000 6000
Elevate stroke (mm) 1500 2000 4000 5000 6000
Column rotate range +/-180° By manual +/-180° +/-180° +/-180°
Boom elevate speed 400mm/min 1000mm/min 1000mm/min 1000mm/min
Boom transverse speed 120-1200mm/min 120-1200mm/min 120-1200mm/min 120-1200mm/min 120-1200mm/min
Criss-Cross slide stroke 100*100mm by manual 100X100 100X100 100X100
Max load at end 50kg 200kg 200kg 200kg
Base ravel speed Movable By manual 200-2000mm/min 200-2000mm/min 200-2000mm/min
Fixed 0
Min height of the boom Movable 515mm 468mm 780mm 800mm 865mm
Fixed 475mm 448mm 670mm 710mm 765mm
Overall height Movable 2310mm 3140mm 5940mm 6960mm 8230mm
Fixed 2270mm 3120mm 5830mm 6870mm 8130mm



Longitudinal Seam Column And Boom Welding Manipulators For Tank / Wind Tower 0



Key benefits
• Can weld components up to 6000 mm height
• Can weld bores up to 5800 mm diameter
• Proven equipment technology
• Easily scalable to meet your different job sizes and requirements
• Uses standard mechanical hardware available from various suppliers
• Low capital costs
• Vertical or horizontal slide assemblly
• Wide range of columns and booms and turntables to suit the application
• Multiple turntable systems for higher productivity
• Pipe rotating systems



Longitudinal Seam Column And Boom Welding Manipulators For Tank / Wind Tower 1



Applications: Process for welding and hard surfacing of low alloyed carbon steel, stainless steel and refractory steel. It combines productivity, quality and operator comfort. It is used in thicknesses from 3 to 300 mm and provides a high welding speed and high deposition rates. With one or more wires, it is found in many industries: infrastructure,shipbuilding, offshore pipe mill, heavy duty pressure vessels.
