Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table

China Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table supplier
Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table supplier Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table supplier Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table supplier

Large Image :  Universal Heavy Duty Rotary Pipe Welding Positioners 10 Ton Tilting 2M Table

Product Details:

Place of Origin: PRC
Brand Name: Well Leader
Certification: CE,ISO
Model Number: HB-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Product: Pipe Positioner Capacity: 10000kg
Function: Rotate & Tilting Place Of Origin: WUXI, CN
Certificate: CE Control Cable: 10M
Bearing: SKF Table: 2000mm
Tilting Torque: 96243N.m Rotation Torque: 22560N.m

Universal Heavy Duty Rotary Welding Positioner Rotator 10Ton Tilting 2M Table

By combining a positioner with a welding power source and a torch stand, a welder can perform semiautomatic welding that is productive and ergonomically friendly. The positioner holds the part and maneuvers it under a stationary torch. This torch can be fitted with a weaving device to allow oscillation to fill large gaps or V-grooves. Consistent speed and torch position improve the quality of the weld with greater repeatability. By using a communication cable between the integrated positioner and a welding power supply, the operator only needs to signal a start through a foot pedal or a start button, and the welding cycle will continue until the signal is automatically sent that it has completed. This method, typically used on a circumferential weld, can incorporate dwell times to create a puddle and fill the crater. The completed part is removed and another is started.




Model HB-100
Rated capacity 10 ton At 0-135deg position
Max gravity (mm) 400
Max eccentric (mm) 200
Rotate speed(rpm) 0.05-0.5(By stepless inverter)
Tilting speed(rpm) 0.24
Rotate range 360deg unlimited
Tilt range 0-135deg
Rotate motor 3
Rotate torque 22560N.m
Tilt motor 4
Tilt torque 96243N.m
Earthing (amps) 1000A
Table size Φ2000mm




Specifications:
- Hi- precision slew bearing structure with unlimitation
rotating 360o.
- Mitsubishi / Schneider Inverter to provide stepless variable speed.
- Siemens / Schneider electical components.
- Remote box with long cables.
- Optional Wireless remote box.
- Indication of tilting degree
- Limited switch to prevent over tilting.
- CE approved.

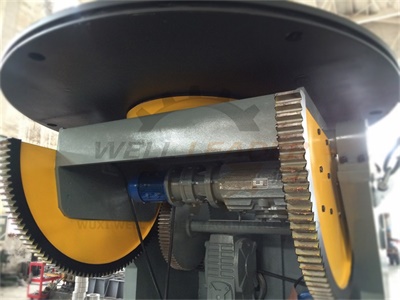

Main configurations:
1. Rotate motor: 3Kw, brand “Invertek”, Wuxi made.
2. Tilt motor: 4Kw, with brake, brand “ Invertek”, Wuxi made.
3. Rotate gearbox with cycloid gear, brand “ Aochuang”, Wuxi made.
4. Tilt gearxbox, brand “ Hangtian”, Zhejiang made.
5. Bearings, brand “ SKF”, Japan made.
6. Inverter, brand “Schneider”, China made.
