Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia

China Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier
Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia supplier

Large Image :  Carry 12 Ton Turning Rolls Welding , Heavy Duty Rotator For 1500mm Diameter To Australia

Product Details:

Place of Origin: PRC
Brand Name: Well Leader
Certification: CE,ISO
Model Number: GK-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Rotary Capacity: 12 Ton Load Capacity: 12+ Ton
Workpiece Dia. Range: 300-1500mm Wheel Material: Steel Rings+rubber Core
Speed Range: 100-1000mm/min Power: 2x1.1kW
Remote Cable: 15m Wireless Remote: Avalable

Tank Turning Rolls Pipe Rotator Carry 12Ton for 1500mm Diameter to Australia



All products range:



Model

Max loading

(Kg)

Applied job dia

(mm)

Wheel dia. & width(mm) Wheel linear speed(mm/min) Motor power(kw)
Rubber or PU Metal
GK-5 5000 Φ250-2300 Φ250*100 2*Φ240*20

100-1000

By stepless inverter

2×0.37
GK-10 10000 Φ320-2800 Φ300*120 2*Φ290*25 2×0.55
GK-20 20000 Φ500-3500 Φ350*120 2*Φ340*35 2×1.1
GK-30 30000 Φ550-4000 Φ350*120 2*Φ340*35 2x1.5
GK-40 40000 Φ600-4200 Φ400*120 2*Φ390*45 2×1.5
GK-50 50000 Φ650-4500 Φ400*120 2*Φ390*45 2x2.2
GK-60 60000 Φ750-4800 Φ450*120 2*Φ440*60 2×2.2
GK-70 70000 Φ800-4900 Φ450*120 2*Φ440*60 2x3
GK-80 80000 Φ850-5000 Φ500*120 2*Φ490*70 2×3
GK-90 90000 Φ900-5200 Φ500*120 2*Φ490*70 2x4
GK-100 100000 Φ1000-5500 Φ500*120 2*Φ490*100 2×4
GK-160 160000 Φ1100-6000   Φ650*220 2×4
GK-250 250000 Φ1200-7000   Φ700*290 2×5.5
GK-400 400000 Φ1300-7500   Φ800*320 2×7.5
GK-650 650000 Φ1400-8500   Φ900*400 2×11



The GK-type adjustable welding rotator is designed for handling and automatic welding circular metal containers, and it mainly used in oil industry, press vessel field, wind tower production line, pipe line production field, and many other round workpiece fields.

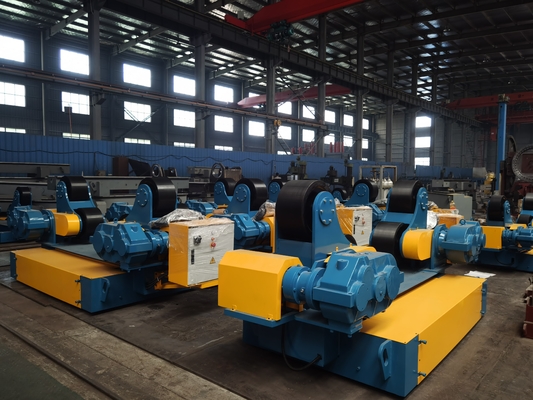

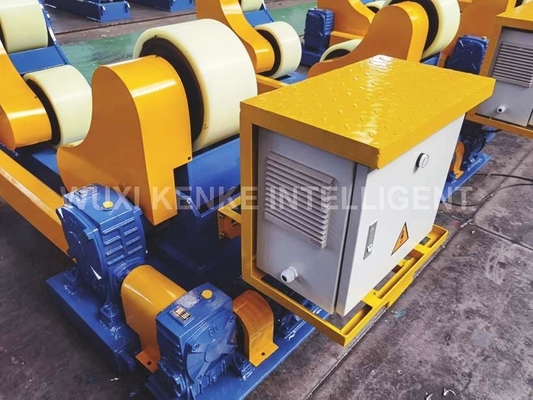

It is mainly composed of a drive rotator, an idle rotator, an electric control box, and a remote control box. The drive rotator owns two sets of movable rolling wheels and bases. The base has a box structure to protect the inside screw components, and the base can also connect the two movable drive rotators. By rotating the screw, the two sets of rolling wheels can simultaneously move forward or backward. This adjustable welding rotator is connected with an electric motor through a worm gear speed reducer. The drive rotator can offer stable rotating power to ensure the operation efficiency, and the electric control box is fitted with a digital display screen, on which accurate rotating speed of the rotator is shown.
This adjustable welding rotator is designed and manufactured to better meet increasing demands for pressure vessel manufacturers, so it enjoys more advantages over other similar products at home and abroad. It can be used to deal with a wide range of diameters. It features easy operation, high quality, low noise, advanced technology, etc.
Besides, this rotator has obtained CE certificate, and is quite popular among clients in Brazil, India, Jordan, South Africa, UK, Poland, Spain, etc



Model: GK-12 (Conventional type)
-Turning Capacity: 12T
-Roller Diameter : Φ300mm
-Roller width: 150 mm
-Roller surface speed range: 100-1000mm / min
-Loaded Vessel/Tank diameter range: Φ300-3000mm
-Drive unit: AC frequency conversion motor and qualified gearbox.
-Wheel center adjustment
(for both drive unit and Idler unit): Bolt shift type.
-Remote control: Remote control pendent with 15mtrs long Cable
-Rotational speeds (variable speed AC drive): Step-less variable speeds are to be adjusted from min 100mm/min to max 1000mm/min by a potentiometer on the remote control through inverter.
-Rollers: PU
-Motor power: 2X1.1kW
-Power supply: 380V/400V/415V
