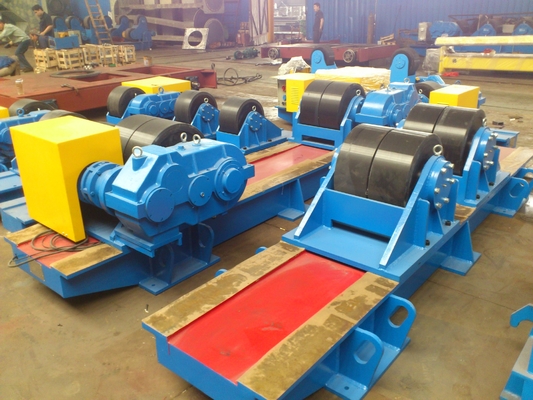

100 Ton Welding Tank Rotators Turning Roller Bolt Fixed Type

100t Conventional Welding Rotator Welding Tank Turning Rollor Bolt Fixed Type

Brief introduction:

• Conventional welding rotator with safety working load 100t/set(1drive &1idler)
• suitable for tank diameter 1000mm~6000mm.

Description:

• The Conventional welding rotator is including 1drive rotator, 1idler rotator, control cabinet & pendant controller.
• The drive roller bed is driven by heavy duty AC motors which is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.
• Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various tank diameter.
• ​The AC Inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.
• The wheel of the welding rotator is PU coated on steel drum.
• The operation is with a remote controller.

Main technical parameters

Feature:

• Using cycloidal planetary gear reducer or worm reduction gear with dual motor driving mode.
• The 100t welding rotator have a strong and durable construction with creates a very high stability.
• Top-class electronic components, stepless adjustable speed of the driven part in CE marked.
• Tailor made suitable for tank diameter upto 10000mm, suitable for chemical machinery industry.
• It can linkage control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.
• The favourable price performance ratio yields will ensure a quick payback of your investment
• We also provide tailor-made conventional welding rotators according to your special requirements.

Competitive advantage:

• VFD rotary speed control, improving the reliability of operation.
• Forging steel roller which can ensure a long time using
• With lubrication system.
• Accept testing before delivery.
• Accept special design and custom.

Exporting Packing

    Packed with bubble wrap and plactic wrap.
