Product Details:
|
| High Light: | weldings positioner 600 kg,1000 lb weldings positioner KENKE,welding positioners 600 kg KENKE |
||
|---|---|---|---|

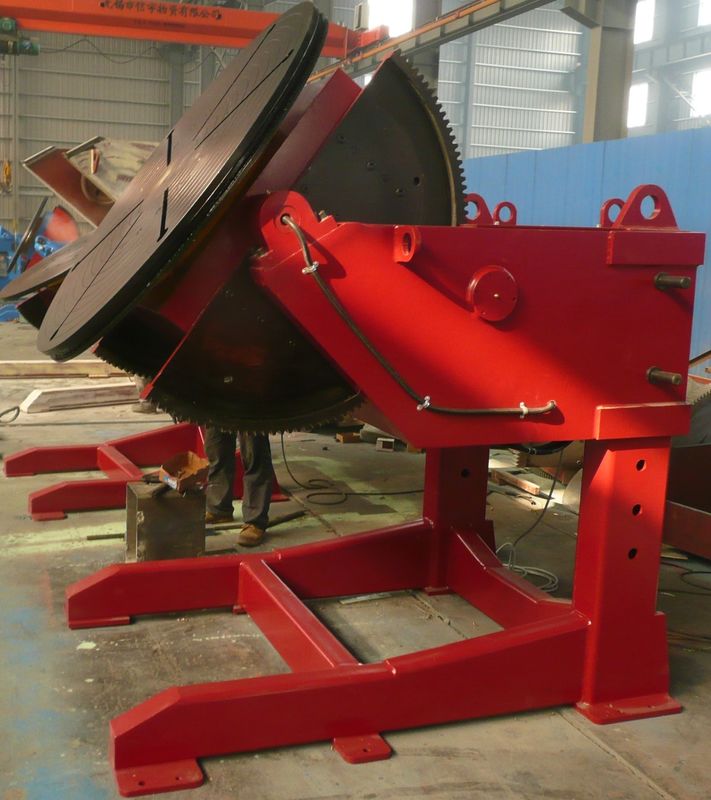

Elevating Welding Positioner HBS30 Manual Elevating
Practical and Versatile of Welding Positioner
KENKE has a comprehensive range of welding positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s welding positioners are with capacities ranging for 300 to 500,000kgs.
KENKE HBS Series elevation welding positioners are the perfect solution to the problem of rotating and tilting demanding work pieces. Center height, Angle and rotation speed are all adjustable.
Delivery Scope of Elevating Welding Positioner
1 Main body
1 Electric control system
Main Parameters of Elevating Welding Positioner
| Model | Max. load | Distance (G)* of Gravity |
Eccentricity (E)* distance |
Rotation speed | Tilting range | Table diameter |
| HBS-06 | 600 kg | 200 mm | 100 mm | 0.1-1 rpm | 0º-135º | 1000 mm |
| HBS-10 | 1,000 kg | 200 mm | 100 mm | 0.075-0.75 rpm | 0º-135º | 1000 mm |
| HBS-20 | 2,000 kg | 200 mm | 200 mm | 0.08-0.8 rpm | 0º-135º | 1200 mm |
| HBS-30 | 3,000 kg | 200 mm | 200 mm | 0.05 – 0.5 rpm | 0º-135º | 1400 mm |
| HBS-50 | 5,000 kg | 300 mm | 200 mm | 0.05 – 0.5 rpm | 0º-135º | 1500 mm |
| HBS-100 | 10,000 kg | 350mm | 200mm | 0.05 – 0.5 rpm | 0º-135º | 1800 mm |
