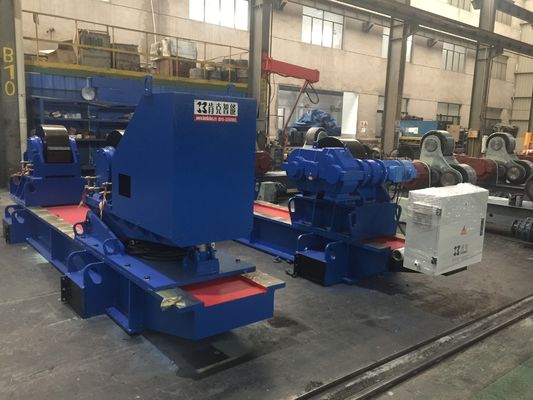

300t Quality Tank Rotator Welding Turning Roller AC Inverter

300t Anti-drifting Welding Rotator Welding Tank Turning Rollor Bolt Fixed Type

 we also can design the customize various types of the welding rotator in accordance with the customers requirement
Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable
precision.

Brief introduction:

• Anti-drifting welding rotator with safety working load 300t/set(1drive &1idler)
• suitable for tank diameter 1000mm~6000mm.
• Idler rotator with lifting device to adjust the height of the roller, which can prevent the pipe creep while turning.

Description:

• The Anti-drifting welding rotator is including 1drive rotator, 1idler rotator, control cabinet & pendant controller.
• The drive roller bed is driven by heavy duty AC motors which is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.
• Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various tank diameter.
• ​The AC Inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.
• The wheel of the welding rotator is forging steel.
• The operation is with a remote controller.

Main technical parameters

Feature:

• Using cycloidal planetary gear reducer or worm reduction gear with dual motor driving mode.
• The 300t welding rotator have a strong and durable construction with creates a very high stability.
• Top-class electronic components, stepless adjustable speed of the driven part in CE marked.
• Tailor made suitable for tank diameter upto 6000mm, suitable for chemical machinery industry.
• It can linkage control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.
• The favourable price performance ratio yields will ensure a quick payback of your investment
• We also provide tailor-made conventional welding rotators according to your special requirements.

Competitive advantage:

• VFD rotary speed control, improving the reliability of operation.
• Forging steel roller which can ensure a long time using
• With lubrication system.
• Accept testing before delivery.
• Accept special design and custom.

Exporting Packing

    Packed with bubble wrap and plactic wrap.
