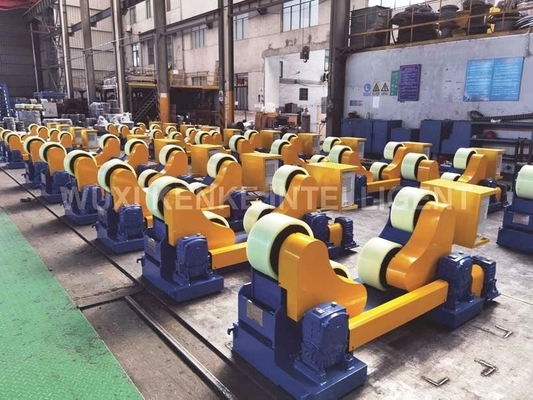

Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t

Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t
Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t

Large Image :  Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: KENKE
Certification: CE, ISO9000
Model Number: HGZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pls confirm with us
Packaging Details: Main frame naked, spare parts packed in case
Delivery Time: 30 working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 30 sets per month

Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t

Description
Configuration: One Power Rotator And One Idler Rotator Loading Capacity: 5t-40t
Roller Speed: 6-60m/h Speed Regulation: AC Inverter
Roller Material: PU Coated On Steel Drum Color: Blue RAL5012, Or According To Customer
Power Input: According To Users' Site
High Light:

small pipe welding rotators

,

Pipe Welding Rotators Self Adjustable 40t

,

self Adjustable welding rotator

PU Roller Pipe Welding Rotator Self Aligning Turning Roller Rotation Speed Adjustable





Application
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
Specifications
Self centering rotator
1. 1 drive unit+1 idler unit
2. Siemens electric components
3. Variable frequency drive
4. CE approved



The HGZ type self-aligning rotator are widely used in industries as boiler, pressure vessel, chemical petroleum, construction machinery, for inner&outer longitudinal welding and circumferential welding of various seams on tanks. It has merits of advanced technology, reliable quality and simple operation and can improve the quality of jointing effectively.



Main Technical Parameter of Self-aligning rotator

Model

Max. load

Workpieces dia.

Roller material

Roller dia.

Roller width

Rolling speed

Roller motor

HGZ-5

5,000kg

Ø250-Ø2,500mm

Steel coated with PU

Ø250mm

100mm

6-60m/h

0.75kw

HGZ-10

10,000kg

Ø320-Ø3,200mm

Steel coated with PU

Ø300mm

120mm

6-60m/h

1.1kw

HGZ-20

20,000kg

Ø500-Ø3,800mm

Steel coated with PU

Ø350mm

150mm

6-60m/h

1.5kw

HGZ-40

40,000kg

Ø600-Ø4,500mm

Steel coated with PU

Ø400mm

160mm

6-60m/h

3kw







Structure and characteristic

  • HGZ type Self-aligning rotator consists of power roll, idler roll and electric control system,etc.
  • The base of the rotator use the plates welded together and stress by annealing. It ensure the strength of the base and after a long time to overcome the stress generated by the welding deformation.
  • The power rotator has a set of driving system which mainly consists of AC motor , reducer, coupling and connecting shaft. Through the AC motor and two sets of worm gear reducers working together, which ensures to make the rollers run.
  • The electric control system consists of the electric control box and remote control box.
  • The electric control box consists of the inverter, contactor, button, etc. The mainly electric components are using the famous brands, such as Siemens, ABB and so on, which are which are reliable performance and easy maintenance. It controls brake of the motor and meet the requirements of the machanism action. And it can control and protect the motor. The frequency conversion system uses the YASKAWA system, which is low-noise, high-performance, multi-function transducer, no torque ripple. And other characteristics of the control signals using analog control, speed shows is using high-precision digital display meter, the overall stability of high anti-jamming capability.

Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 0Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 1Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 2Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 3




Competitive Advantage


● Inverter and Main electric elements are Siemens/Schneider or equal brand.

● Motor is UK brand Invertek.

● VFD rotary speed control, improving the reliability of operation.

● Steel or PU roller which can ensure a long time using (at least 2 years).

● With lubrication system.

● Accept testing before delivery.

● Accept special design and custom.



Packing and delivery

Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 4Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 5Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 6Small Pipe Welding Rotators Self Adjustable Turning PU Roller Rotation 5t To 40t 7
