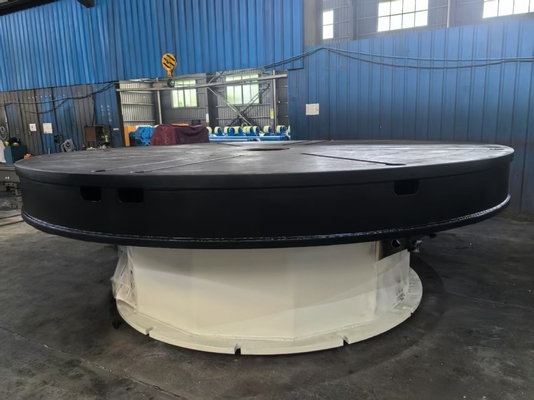

50T Welding Positioner Turntable For Pipe Roller Tank Fabrication

50T Welding Positioner Turntable For Pipe Roller Tank Fabrication
50T Welding Positioner Turntable For Pipe Roller Tank Fabrication 50T Welding Positioner Turntable For Pipe Roller Tank Fabrication

Large Image :  50T Welding Positioner Turntable For Pipe Roller Tank Fabrication

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: KENKE
Certification: CE, ISO9000
Model Number: HJ500
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Please confirm with us
Packaging Details: Seaworthy package
Delivery Time: 40 working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 10 sets month, 100 sets per year
Contact Now

50T Welding Positioner Turntable For Pipe Roller Tank Fabrication

Description
Load Capacity: 50T Rotation Torque: ≥50000 (Dual-Drive)n.m
Worktable Diameter: φ4000 Table Height: 1250 (excluding Foundation Pads)
Rotation Angle: 0°～±360° (Continuous Unlimited Rotation) Rotation Speed: 0.005 - 1 Rpm
Speed Accuracy: ≤1% Radial Runout: ≤0.5mm
Axial Runout: ≤0.5mm Speed Control: Servo Drive
Motor Power: 2×11 (Dual-Drive)kW Control Mode: Wireless Remote & Programmable PLC
Conductive Capacity: 2000A Workpiece Compatibility: Supports Workpiece Diameter ≥φ4000 For Welding And Cleaning
Highlight:

Tank Fabrication Welding Positioner

,

50T Welding Positioner

,

Pipe Roller Welding Positioner

Detailed Product Description:

  • Adjust mode: Servo-controlled speed adjustment
  • Structure: Heavy-duty steel structure with precision machining
  • Drive System: Dual servo motor drive for high torque and smooth operation
  • Electrics: CE-compliant safety standards
  • Application: Large-diameter pipe welding, tank fabrication, pressure vessels
  • Speed Control: AC Servo Control
  • Control System: Wireless remote & programmable PLC control

Brief Introduction:

The HJ500 Welding Positioner Turntable is a high-precision, heavy-duty solution for large pipe and tank fabrication. Built with high-strength steel, all welded parts undergo stress-relief treatment to prevent deformation over long-term use.

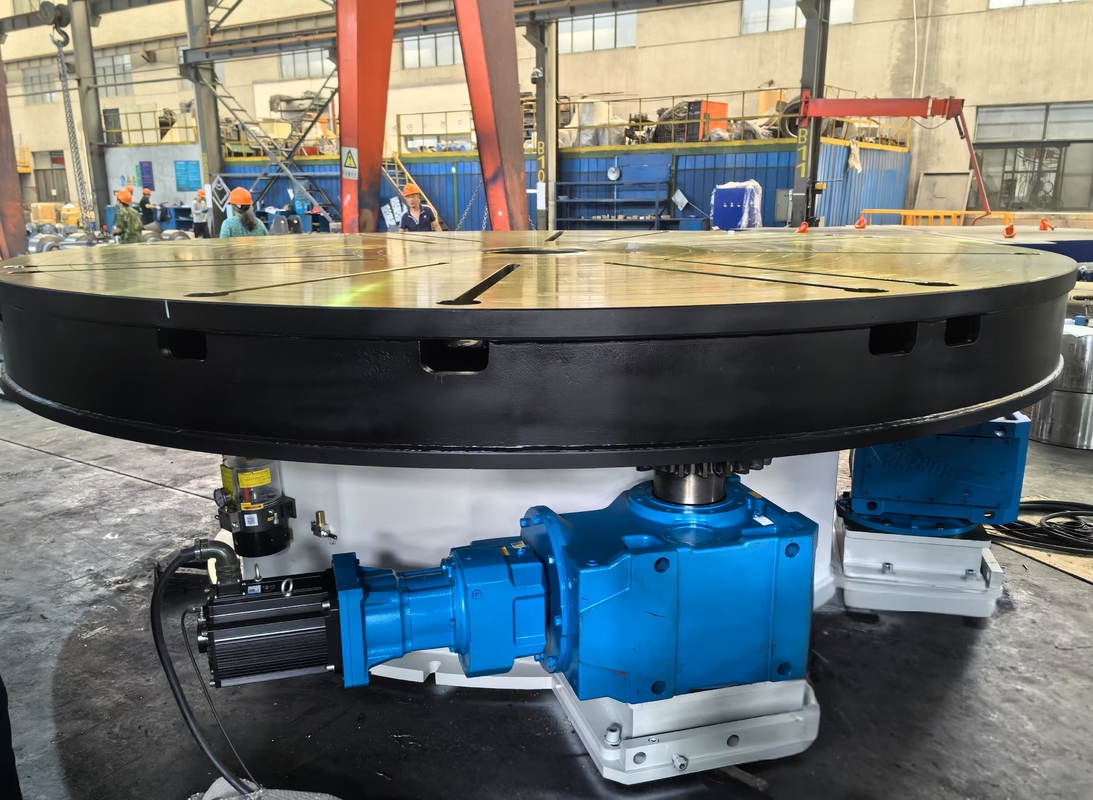

Equipped with dual-drive servo motors, this positioner ensures precise, smooth, and continuous 360° rotation. It features both wireless remote and PLC control, allowing operators to control rotation manually or via pre-programmed automation.

Technical Parameters of HJ500 Welding Positioner:

No. Item Unit Parameter
1 Load Capacity t 50
2 Rotation Torque n.m ≥50000 (Dual-Drive)
3 Worktable Diameter mm φ4000
4 Table Height mm 1250 (excluding foundation pads)
5 Rotation Angle ° 0°～±360° (Continuous Unlimited Rotation)
6 Rotation Speed rpm 0.005 - 1
7 Speed Accuracy   ≤1%
8 Radial Runout mm ≤0.5
9 Axial Runout mm ≤0.5
10 Speed Control   Servo Drive
11 Motor Power kW 2×11 (Dual-Drive)
12 Control Mode   Wireless Remote & Programmable PLC
13 Conductive Capacity A 2000
14 Workpiece Compatibility   Supports workpiece diameter ≥φ4000 for welding and cleaning

Functions:

  • Forward/stop/reverse rotation
  • Variable speed control with high precision
  • Continuous 360° unlimited rotation
  • Automatic/manual control via PLC & wireless remote
  • Emergency-stop safety feature
  • Real-time system diagnostics & fault detection

Applied Industries:

  • Wind tower fabrication
  • Large pipe welding and assembly
  • Pressure vessel manufacturing
  • Chemical & fuel storage tank fabrication
  • Heavy industrial welding applications

Key Features:

  • Heavy-duty steel construction for long service life
  • Dual servo motor drive for high torque and smooth operation
  • Variable frequency drive (VFD) for precise speed control
  • Programmable PLC & wireless remote control for flexible operation
  • CE-certified safety standards
  • Customizable to meet specific project requirements

Points You May Concern:

Customization - Can this machine be customized?

Yes, we provide tailor-made solutions based on your specific requirements.

Transportation - What is the shipping method?

Standard seaway transportation is used. Rail-sea combined transport is also available.

After-Sale Service - What support do you provide?

  • 12-month warranty for the entire machine.
  • Full responsibility for quality-related issues.
  • Lifetime technical support.
  • On-site engineer service available upon request.
