High-Efficiency TIG Welding System with Integrated Automation Equipment

High-Efficiency TIG Welding System with Integrated Automation Equipment
High-Efficiency TIG Welding System with Integrated Automation Equipment High-Efficiency TIG Welding System with Integrated Automation Equipment High-Efficiency TIG Welding System with Integrated Automation Equipment

Large Image :  High-Efficiency TIG Welding System with Integrated Automation Equipment

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: KENKE
Certification: CE, ISO9000
Model Number: TIG Welding System
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Please confirm with us
Packaging Details: Seaworthy package
Delivery Time: 30 working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 10 sets month, 100 sets per year
Contact Now

High-Efficiency TIG Welding System with Integrated Automation Equipment

Description
Load Capacity: 50 Tons Eccentricity: ≤100 Mm
Center Of Gravity Offset: ≤1000 Mm Applicable Diameter: 500–2500 Mm
Rotation Speed: 0.01–0.5 Rpm (±1%) Tilt Speed: 0–0.5 Rpm (±1%)
Tilt Range: -95° ~ +95° Tilt Accuracy (Mechanical): ±0.1°
Rotation Resolution (Electrical): 1°/7850 Reverse Backlash: ≤0.1°
Rotational Conductivity: 3000A @ 100% Duty Cycle Faceplate Runout: ≤0.2 Mm
Drive System: Dual Servo (for Both Rotation & Tilt) Mounting: Ground Or Steel Base Mounted
Integrated PLC Control: With HMI, Interlocks, Feedback, Alarm & Dual-mode Communication: Sync With POLYSOUDE; Supports Both Local/linked Mode

High-Efficiency TIG Welding System with Integrated Automation Equipment

Overview

The TIG welding system is designed to support fully automated overlay welding processes using POLYSOUDE equipment. It includes:

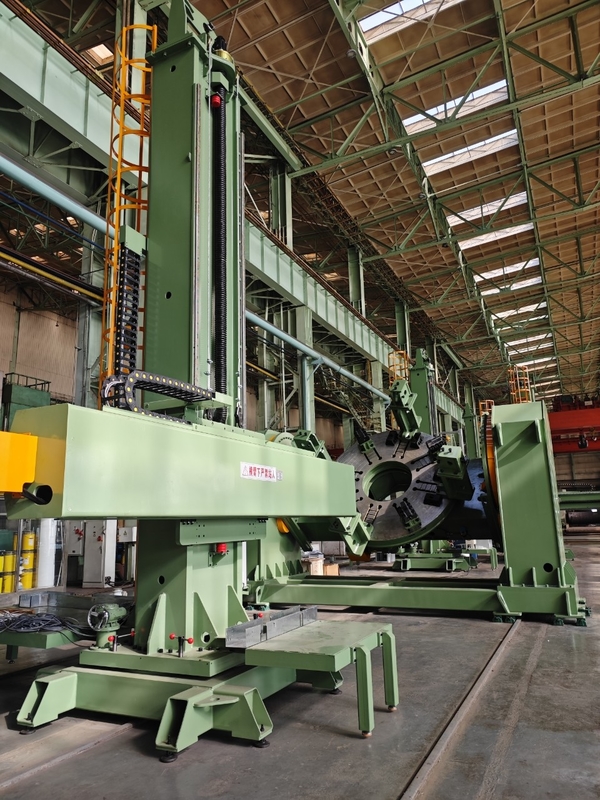

  • 4 sets of 2000×3700 precision welding column & boom manipulators

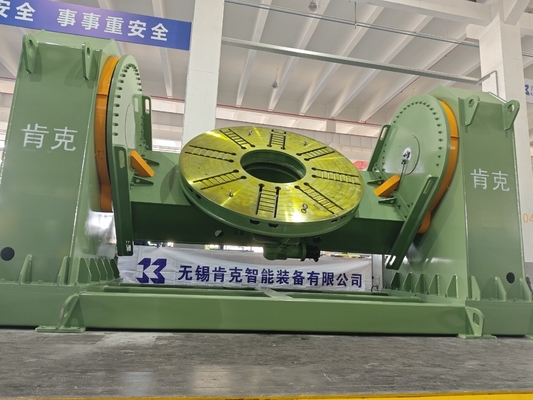

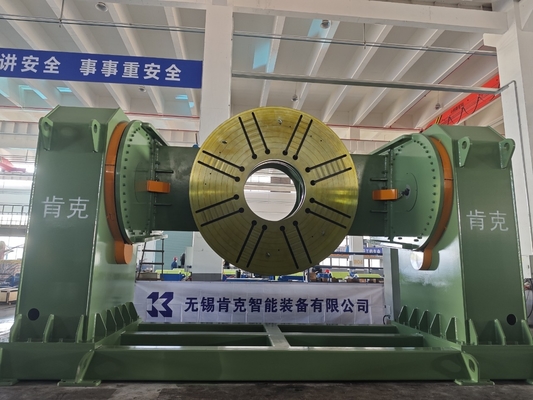

  • 1 set of 50-ton dual-drive welding positioner

  • 1 set of heavy-duty workpiece fixture system

This equipment ensures high precision, excellent rigidity, and long-term reliability for critical components such as nuclear pump housings, operating in harsh environments (coastal, high humidity, continuous-duty production lines).

Main Components & Features
