HBJ Series Welding Positioner

Versatile and Reliable Welding Positioning Solution

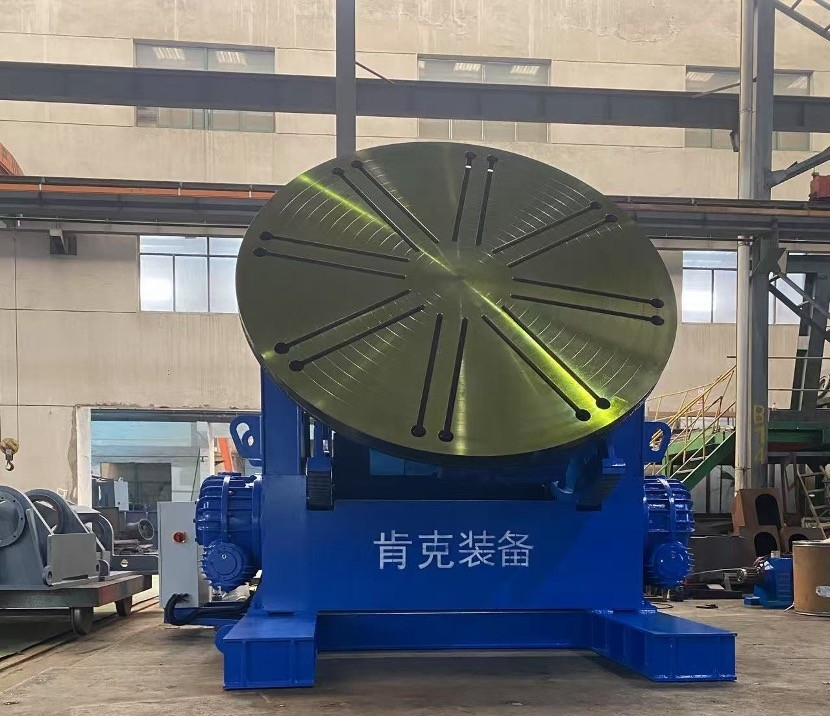

KENKE’s HBJ Series welding positioners are designed to meet the demands of various structural component manufacturing industries, including boiler fabrication, pressure vessels, petrochemical, power machinery, and more. These positioners help reduce welding auxiliary time, lower labor intensity, and significantly improve productivity and weld quality.

Product Features

• Adjustable Tilt and Rotation: The worktable rotates and tilts to achieve optimal welding angles. Rotation speed is stepless and controlled via an AC servo system, enabling smooth operation and precision.

• Robust Structure: The frame is made from high-strength welded plates and profiles, stress-relieved by annealing to ensure long-term durability without deformation.

• High-Performance Drive System: Rotation is driven by an AC servo brake motor and gear reducer, engaging a slewing bearing for smooth, powerful operation. The slewing bearing features a single-row ball structure with excellent rigidity and long lifespan.

• User-Friendly Worktable: Equipped with eight radial T-slots, four machine tool chucks, and concentric positioning grooves for easy fixture installation and alignment of various workpieces.

• Accurate Tilting Mechanism: The tilt system uses a single motor driving dual gear sectors through a long shaft for synchronized movement. Equipped with self-aligning roller bearings and accurate positioning thanks to AC brake motors.

• Digital Control Panel: Includes wireless remote operation, digital speed display, and servo control. Key components are sourced from brands like Siemens, Delta, and ZH/Zhejiang Hengchi.

Technical Specifications

Electrical Configuration
